Single Ply Roofing Systems

Mechanically fixed (StrataPlan SF) & Fully adhered sections (StrataPlan GF) StrataPlan SF represents a high-functioning waterproofing membrane made of polyester-mesh reinforced PVC-P, specifically engineered for mechanical fixation in roofing applications. This membrane meets rigorous standards, including ISO 14001 for environmental compliance.

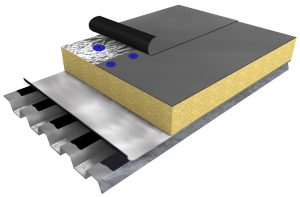

StrataPlan SF is available in 1.2mm x 1.025m x 20 metre rolls or 1.5mm x 1.025m x 20 metre rolls – RAL7016. The StrataPlan SF Roof Covering System is comprised of the roofing membrane, featuring hot-air welded lap joints and is securely mechanically fastened. The PVC-P membrane is constructed through an extruded-mould process, incorporating upper, middle, and lower layers fused together through a thermoplastic method, effectively encapsulating a polyester mesh within.
StrataPlan SF holds various certifications, including accreditation by the BBA for over 30 years, ISO 14001 for Environmental Management, ISO 9001 for Quality Management.
StrataPlan GF is an advanced PVC-P roof waterproofing membrane featuring a non-woven polyester fleece backing, specifically designed for complete adherence as a waterproof cover. Accredited with the ISO 14001 environmental standard. StrataPlan GF stands as a high-performance solution.
The StrataPlan GF Roof Covering System is well-suited for complete adhesion as a waterproof layer on both pitched and flat roofs. Featuring a non-woven textile polyester fleece beneath the membrane, this product allows for full or partial adherence using a recommended adhesive.
StrataPlan GF holds various certifications, including a BBA accreditation spanning over 30 years, ISO 14001 Environmental Management accreditation, ISO 9001 Quality Management accreditation. Additionally, it aligns with standards for PVC-P films used in constructing liquid barriers.
